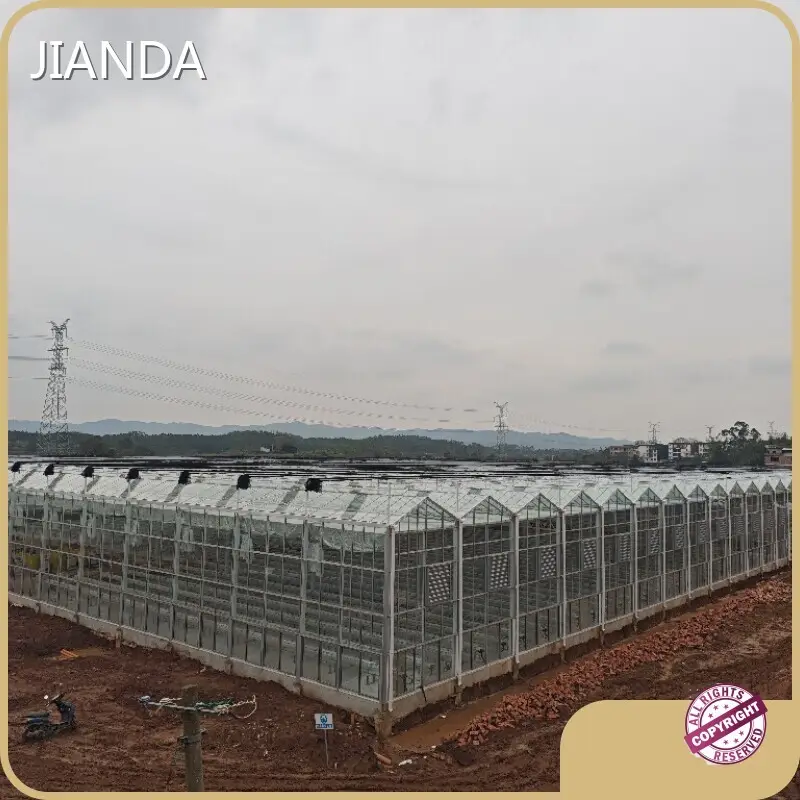

agricultural greenhouse steel structure materials used in greenhouse are made of national standard high quality black steel tube, without weld, all parts connected by bolts and nuts.
The main design technical parameters of this project
(1)Wind load: 120 Km/m2
(2)Snow load: 0.30KN/m2
(3)Maximum rainwater drainage capacity: 140mm/h
(4)Greenhouse dead load: 20Kg/m2
Agricultural greenhouse main feature and parameters as flowing: Width(m):8m/10m/12m,customized MainPillar:120*120*3.0mm Auxiliarypillar:60*120*2.5mm Singleglass,4+9+4,5+6+5,5+9+5hollowglasstochoose Length(m):customized DistancebetweenBays:4morcustomized Shoulderheight:4m/5m/6m/7m TopHeight:4.9/5.9m/6.9m/7.9m Windload:0.35-0.5kn/m2 Snowload:0.25-0.4kn/m2 Rainfall:140mm/h
Inside shading system and inside thermal insulation system in order to shade and cool the temperature and regulate the growth of crops in summer, this project is combined with the external shading system. In summer, because the solar radiation heat load into the greenhouse is too high, although the greenhouse with ventilation, but the greenhouse of high temperature, low humidity environment is unfavorable for crops growing. The indoor temperature can be controlled to only 1 degree higher than the outdoor temperature in the greenhouse with good ventilation. But about the outside shading system,due to blocking some solar radiation from entering the greenhouse, through. high strength black UV polyester line is used, external shading screen with shading rate of 75%. Good shading effect in summer, good heat preservation effect in winter and low operation cost. According to customer's requirements, the inside shading system and the outside system can all be adopted. The customer can also choose between the inner and outer shading systems.
The ventilation system of agricultural greenhouses, in addition to the windows on the roof, is also designed with ventilation on the side walls, which are driven by motors, gears, and racks to open.
agricultural greenhouse with truss, very strong, can hanging tomato when grow. Agricultural greenhouses are designed with girders in the span direction. Because the span of a greenhouse is generally 12 meters, girders can solve the strength problem of large spans. Vegetables tomatoes and cucumbers can be grown hanging.
Large agricultural greenhouses, integrated water and fertilizer machines and automatic irrigation systems are indispensable parts.
Hanging system for strawberries growing in agricultural greenhouse. The suspension system can realize the lifting and lowering of each row of strawberries, control different heights, and ensure ventilation and lighting.
Vertical farming strawberry in big agricultural greenhouse. There are no strawberries planted on the stand. The bracket is fixed and cannot be raised or lowered.
A-shaped steel bracket, planting trough, and matrix soil for planting strawberries.
Company Advantages
· agricultural greenhouses for sale has flexible design.
· This product guarantees high quality and excellent performance, as all factors affecting its quality and production performance are immediately detected and then corrected by our trained QC personnel.
· The product is able to keep pace with ever-changing demands of customers and is ready for widespread use.
Company Features
· As a professional agricultural greenhouses for sale producer, WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD is greatly recognized among customers.
· A large number of employees at Jianda Greenhouse have been dedicated to product research, design and application development.
· WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD continues to strive to outdo ourselves in the pursuit of excellence.
Application of the Product
Our agricultural greenhouses for sale can be used in multiple areas of multiple industries.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
