Company Advantages
· The production of Jianda Greenhouse double wall polycarbonate greenhouse is ensured by a complete and scientific modern production model, which is a highly efficient way to ensure the production of the product.
· The product is highly reliable in performance and can be used for a long period.
· WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD is dedicated to the general customer service.
Product Features
Generally, solar panel greenhouses are covered with 8mm solar panels. Because the solar panels are hollow materials, the top and sides of the greenhouse are covered with solar panels. The greenhouse has good sealing and good thermal insulation effect. However, compared with the glass greenhouse of the Venlo greenhouse, the sunlight polycarbonate Panel greenhouses have poor aesthetics.
Product Details
Intelligent commercial polycarbonate greenhouse greenhouse skeleton refers to intelligent greenhouse steel materials, including greenhouse greenhouse embedded parts, columns, truss beams, herringbone beams, perimeter beams outside the sunshade skeleton, transmission and so on.
The standard configuration of the sun plate greenhouse skeleton before talking about the details of the intelligent greenhouse skeleton materials:
Column 120*120*3.0 hot dip galvanized square tube
Deputy column 60*120*3.0 hot dip galvanized square tube
End column top cross pull 50*50*2.0 hot-dip galvanized square pipe
Transverse truss top and bottom chord 50*50*2.0 welded frame
Joist support 30*30 angle steel welded frame
Roof girder 30*50*2.0 hot-dip galvanized square tube
Roof purlin 30×50×2.0 hot dip galvanized square tube
Wall purlin 50×50×2.0 hot-dip galvanized square pipe
Outer sun-shading column 50×50×2.0 Hot-dip galvanized square pipe
External sunshade beam 50×50×2.0 hot-dip galvanized square pipe
External sunshade beam 30×50×2.0 hot-dip galvanized square pipe
Drainage gutter T=2.0 Aluminum zinc plated
Motor drive rod Diameter 32×2.0 Hot-dip galvanized round tube.
Product application
POLYCARBONATE GREENHOUSE IN MODERN AGRICULTURE

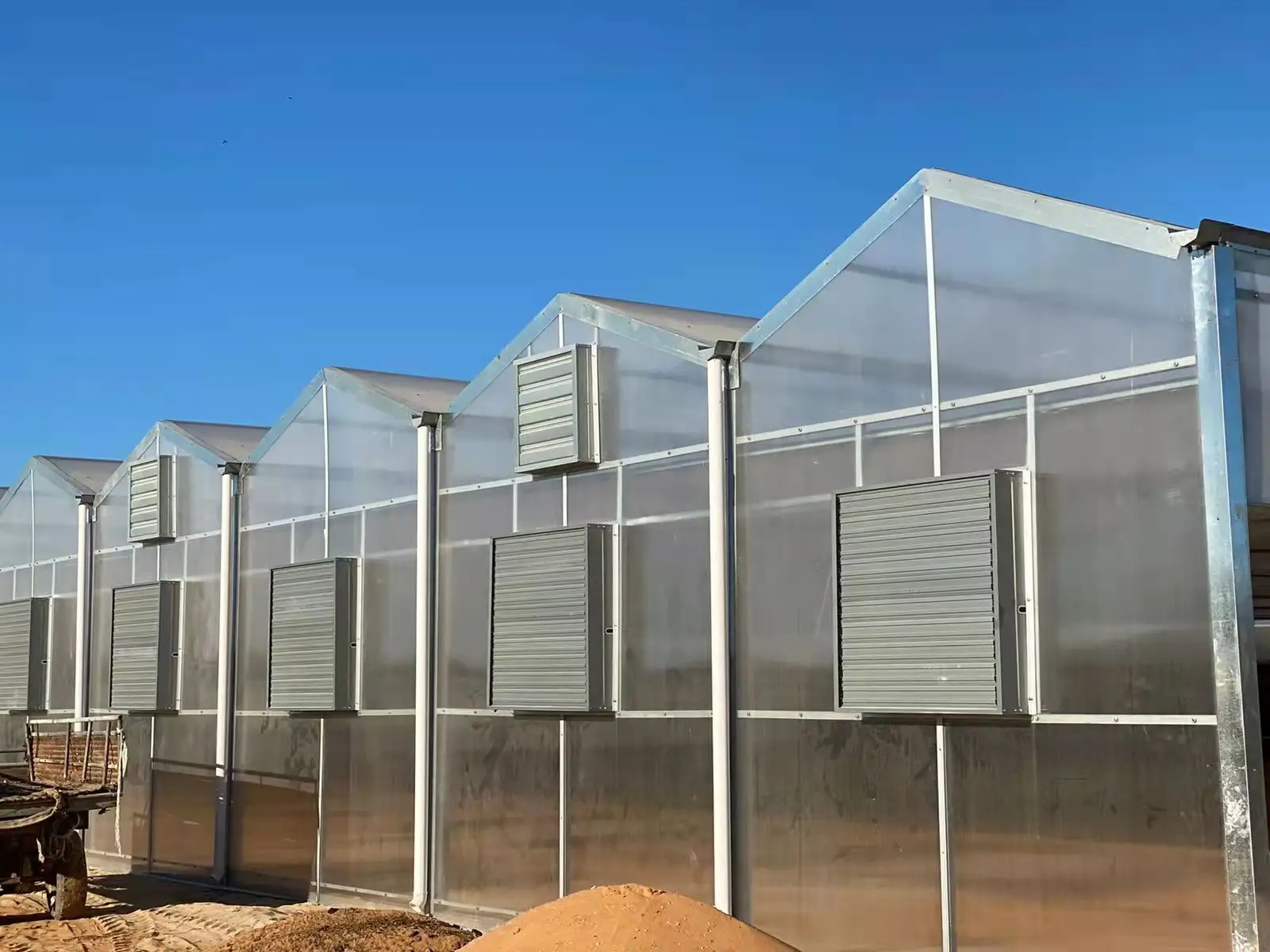

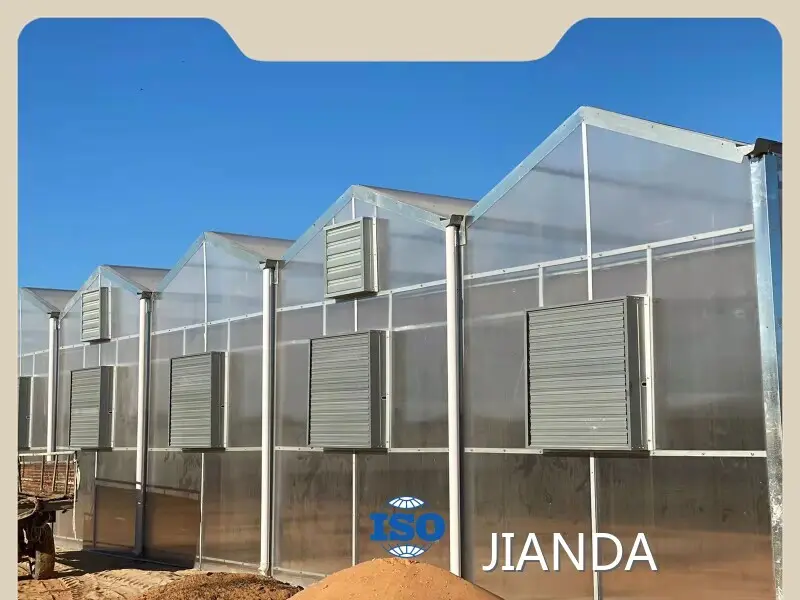

Intelligent commericial polycarbonate greenhouse greenhouse is also known as intelligent greenhouse or intelligent greenhouse, is now on the market in modern agriculture is more widely used in a kind of greenhouse. This structure of the greenhouse is generally a steeple shape, covered with hollow glass or hollow pc sunshine board, supporting the internal sunshade, external sunshade, fan water curtain cooling system, the span is generally 9.6 meters -12 meters, the opening is generally 4-8 meters.
Intelligent glass greenhouse greenhouse or intelligent sun panel greenhouse need to pay attention to the general length and width do not exceed 100 meters, because more than 100 meters in the summer when the greenhouse cooling function has declined, of course, we can also use the air and other cooling facilities such as cooling facilities to assist in cooling, then the resource energy consumption will increase.
Winter intelligent greenhouse greenhouse in the use of the general use of auxiliary heating system. We generally intelligent greenhouse in the construction of the supporting thermal insulation system, including the top of the internal thermal insulation system and the surrounding internal thermal insulation system, which can effectively make the intelligent greenhouse greenhouse in the winter to enhance the temperature.
Intelligent greenhouse greenhouse is widely used, planting, sightseeing and so on.
Company Features
· WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD mainly focuses on the design, manufacture, and marketing of double wall polycarbonate greenhouse and has been a renowned manufacturer in the industry.
· WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD has a number of large-scale production lines for double wall polycarbonate greenhouse. No other company can compare to the strong technical strength of WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD in the industry.
· Jianda Greenhouse can make a welcome contribution to customers' business growth.
Product Details
We are not afraid of customers to pay attention to the details of our double wall polycarbonate greenhouse.
