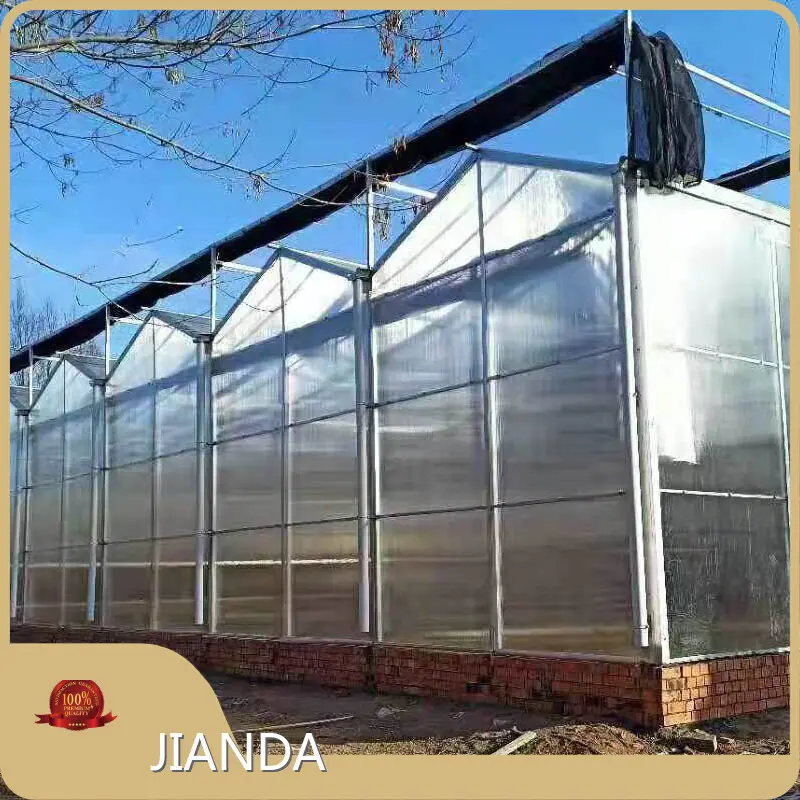

Vegtrug Tomato Greenhouse JIANDA by Jianda Greenhouse
Product details of the vegtrug tomato greenhouse
Product Introduction
The production of Jianda Greenhouse vegtrug tomato greenhouse is in compliance with the accepted international standards. The product has the functionality that meets the application needs. Innovation is a core competency allowing WEIFANG JIANDA GREENHOUSE MATERIAL CO.,LTD to form collaborative partnerships with its customers.
Product Features
Generally, automated hydroponic polycarbaonate greenhouse are covered with 8mm solar panels sheet which is hollow which have good keep temperature capacity. Because the polycarbonate panels are hollow materials, the top and sides of the greenhouse are covered with polycarobnate panels. The greenhouse has good sealing and good thermal insulation effect. However, compared with the glass greenhouse of the Venlo greenhouse, the sunlight polycarbonate sheet greenhouses have poor light transparent.
Product Details
Automate hydroponic polycarbonate greenhouse greenhouse skeleton refers to high quality steel materials, including greenhouse greenhouse embedded parts, columns tubes, truss beams, herringbone beams, perimeter beams outside the sunshade skeleton, transmission and so on.
The standard configuration of the sun plate greenhouse skeleton before talking about the details of the polycarbonate greenhouse skeleton materials:
Main Column 120*120*3.0 hot dip galvanized square tube
Vice column 60*120*3.0 hot dip galvanized square tube
End Face column top cross pull 50*50*2.0 hot-dip galvanized square pipe
Truss top and bottom chord 50*50*2.0 welded frame
Joist support 30*30 angle steel welded frame
Roof girder 30*50*2.0 hot-dip galvanized square tube
Roof purlin 30×50×2.0 hot dip galvanized square tube
Wall purlin 50×50×2.0 hot-dip galvanized square pipe
External sunshade beam 50×50×2.0 hot-dip galvanized square pipe
External sunshade beam 30×50×2.0 hot-dip galvanized square pipe
Drainage gutter T=2.0 Aluminum zinc plated
Motor drive rod Diameter 32×2.0 Hot-dip galvanized round tube.
Product application
POLYCARBONATE GREENHOUSE IN MODERN AGRICULTURE
Hydroponic polycarbonate greenhouse greenhouse is also known as intelligent greenhouse or intelligent greenhouse, is now on the market in modern agriculture is more widely used in a kind of greenhouse. This structure of the greenhouse is generally a steeple shape, covered with hollow glass or hollow pc sunshine board, supporting the internal sunshade, external sunshade, fan water curtain cooling system, the span is generally 9.6 meters and 12 meters, the opening is generally 4-8 meters.
Intelligent glass greenhouse greenhouse or intelligent sun panel greenhouse need to pay attention to the general length and width do not exceed 100 meters, because more than 100 meters in the summer when the greenhouse cooling function has declined, of course, we can also use the air and other cooling facilities such as cooling facilities to assist in cooling, then the resource energy consumption will increase.
Winter intelligent greenhouse greenhouse in the use of the general use of auxiliary heating system. We generally intelligent greenhouse in the construction of the supporting thermal insulation system, including the top of the internal thermal insulation system and the surrounding internal thermal insulation system, which can effectively make the intelligent greenhouse greenhouse in the winter to enhance the temperature.
Intelligent greenhouse greenhouse is widely used, planting, sightseeing and so on.
